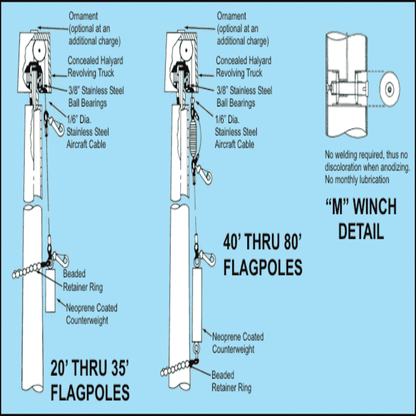

The Deluxe IH Series is an aluminum ground-set, internal halyard flagpole. It contains a winch mounted inside of the of the flagpole shaft, operable only with a removable crank handle. As the stainless steel cable unwinds from the winch, it passes up through the inside of the flagpole shaft, over the truck sheave to the outside of the shaft, where the retaining ring provides a sliding anchor. A counterweight, heavily coated with neoprene, attached to the retaining ring, allows the halyard to be lowered for fastening or removing the flag. The halyard is then raised completely out of reach of vandals. Sizes up to 35 ft. are shipped as one-piece poles. Sizes above 35 ft. are shipped in sections and fitted with a self-aligning sleeve which requires no field welding.
Standard Accessories (Click below to see):
- (1) Retainer Ring
- (1) Counterweight
- (1) M-Winch Handle
- (1) M-Winch System
- (1) Standard Flag Arrangement
- (1) Spun Aluminum Flash Collar
- (1) Cast Aluminum Revolving Truck
- (2) Stainless Steel Swivel Flag Snaps
- (1) 80ft Stainless Steel Cable Assembly
- (1) Galvanized Steel Foundation Sleeve
Available in standard satin finish, however we also offer clear, bronze and black anodized finish at additional cost. While all of our aluminum flagpoles require little maintenance to retain their natural shine, our anodized flagpoles offer an even simpler solution. Our satin brushed finished flagpoles will generally keep clean with the rainfall in most areas, however; because the exterior of the flagpole is aluminum, it will continue to oxidize throughout its lifetime. Special cleaning agents may be required to remove the discoloration caused by this process of oxidation. Our anodized flagpoles do not encounter this problem. The process of anodization actually creates a barrier on the external surface of the aluminum flagpole, thus eliminating the oxidation process. Because the aluminum is not exposed to the elements, it cannot oxidize. The anodized finishes allow you to clean your flagpole with simple soap and water. For this reason, we recommend the purchase of an anodized finish on all of our flagpoles.
Anodized poles take maximum time to ship because they are made to order.
Our commercial poles ship by truck and our shipping calculator is not able to accurately calculate the cost. Click for more information about buying a commercial grade flagpole.
- Country Of Origin:
- United States
- Season:
- Everyday
- Butt Diameter:
- 12in
- Exposed Height:
- 80ft
- Flagged Windspeed:
- 105 MPH
- Overall Height:
- 88ft
- Size:
- 80ft
- Top Diameter:
- 4in
- Unflagged Windspeed:
- 140 mph
- Wall Thickness:
- .375in
- Features:
- Internal Halyard, Revolving Truck
- Type:
- Aluminum, Commercial, Traditional
